Automatic Assembly Machine
American head piercing assembly machine
American head piercing assembly machine

American head piercing assembly machine

This equipment completes the production process of steel belt and hoop shell automatic assembly, riveting, forming, and blanking of large American-style throat hoops.

  • Zahlungsbedingungen :

    China
  • Herkunftsland :

    1200pcs/hour
  • Farbe :

    RAL7035
  • Lieferhafen :

    Fujian xiamen
  • Lieferdatum :

    3-5 working days
  • Menge :

    5000
  • Minimale Bestellmenge :

    1 Set
  • wiegen :

    1T
  • model :

    FLD-XM-21
  • Packing :

    Wooden Box

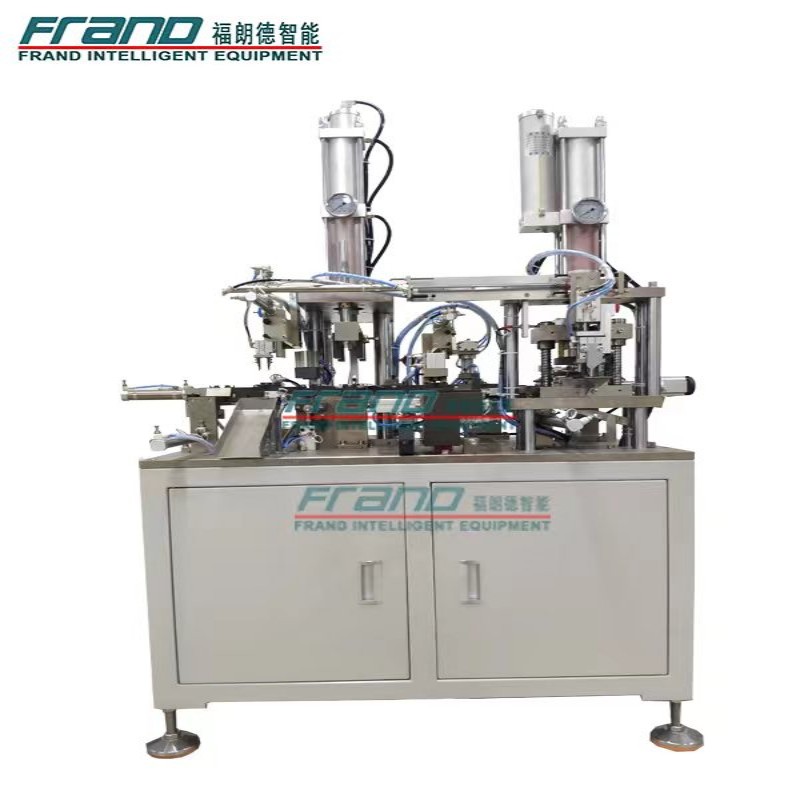

American head piercing assembly machine

This equipment completes the production process of steel belt and hoop shell automatic assembly, riveting, forming, and blanking of large American-style throat hoops.

•   WORKFLOW

STEP1: The steel belt is fed accurately by servo motor, the length can be set, cut and formed by the mold.

STEP2: The hoop shell is automatically loaded by the vibrating plate, assembled with the formed steel strip, and riveted.

STEP3: After completing the assembly of the product, the material is cut.

•  SPECIFICATION

Product name Hose clamp assembly machine
Size

1200mm(length)*1700mm(width)*1800(height)

Weight

1Ton

Working area

3000mm(length)*3000mm(width)

Strength

AC220v,50HZ

Pressure

0.5Mpa-0.7Mpa(72.5-101.5PSI)

Efficiency

1300pcs/hour

Service

One year
